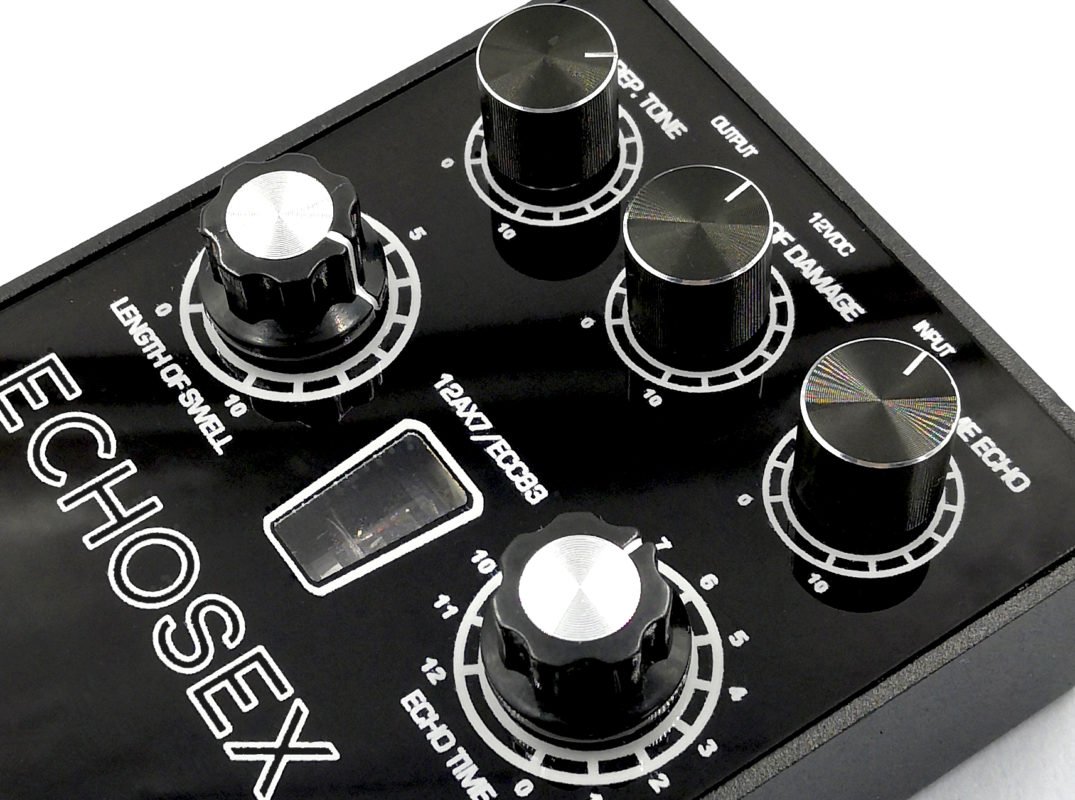

The NEW Echosex 3° reproduces a single Head of the vintage Binson Echorec but with the ability to move that head to change the delay time like a modern delay with the same vintage sound!, Gurus has improved the preamp section which now runs at 262Volts (Just like the vintage Binson!) this makes for huge headroom, results in accentuating the harmonics. This improved input section is now impossible to saturate even with strongest signals from powerful humbuckers, active basses, Fx loops or Keyboards/Synths… The tone is pristine and dynamic, Gone is the “hiss” found in longer delay time settings however there’s no loss of the “dark” character of the vintage “Tape” or “Magnetic-Drum” echo units.
True bypass with golden pin relay, the unit is super quiet with no perceptible noise Plus the slightly smaller box and new “top jack” configuration will make for an easy fit into any pedalboard.
Power In
12VDC (negative TIP)
Consumption at 12V
max 400mA
Input Sensitivity
1Vpp Max
Input Impedance
<1M Ohm
Output Impedance
< 100K Ohm (Unbalanced)
S/N ratio
<90db
Effect Mix Level
Max. 50%
Distortion
max 2%THD
Estimated tube Life
Up to 6000Hrs.
Larghezza (Width)
90 mm. (3,5”)
Lunghezza (Lenght)
130mm. (5,1”)
Altezza (Height)
50mm. (2”)
Peso (Weight)
0,4Kg. (1,5lbs)
