Tech Specs Weight: 360 grs (0,8 lb)
Dimensions: 120 x 70 x 45 mm (4,7 x 2,7 x 1,8 inches) Power supply requirements:
Voltage: 9 to 18V DC regulated

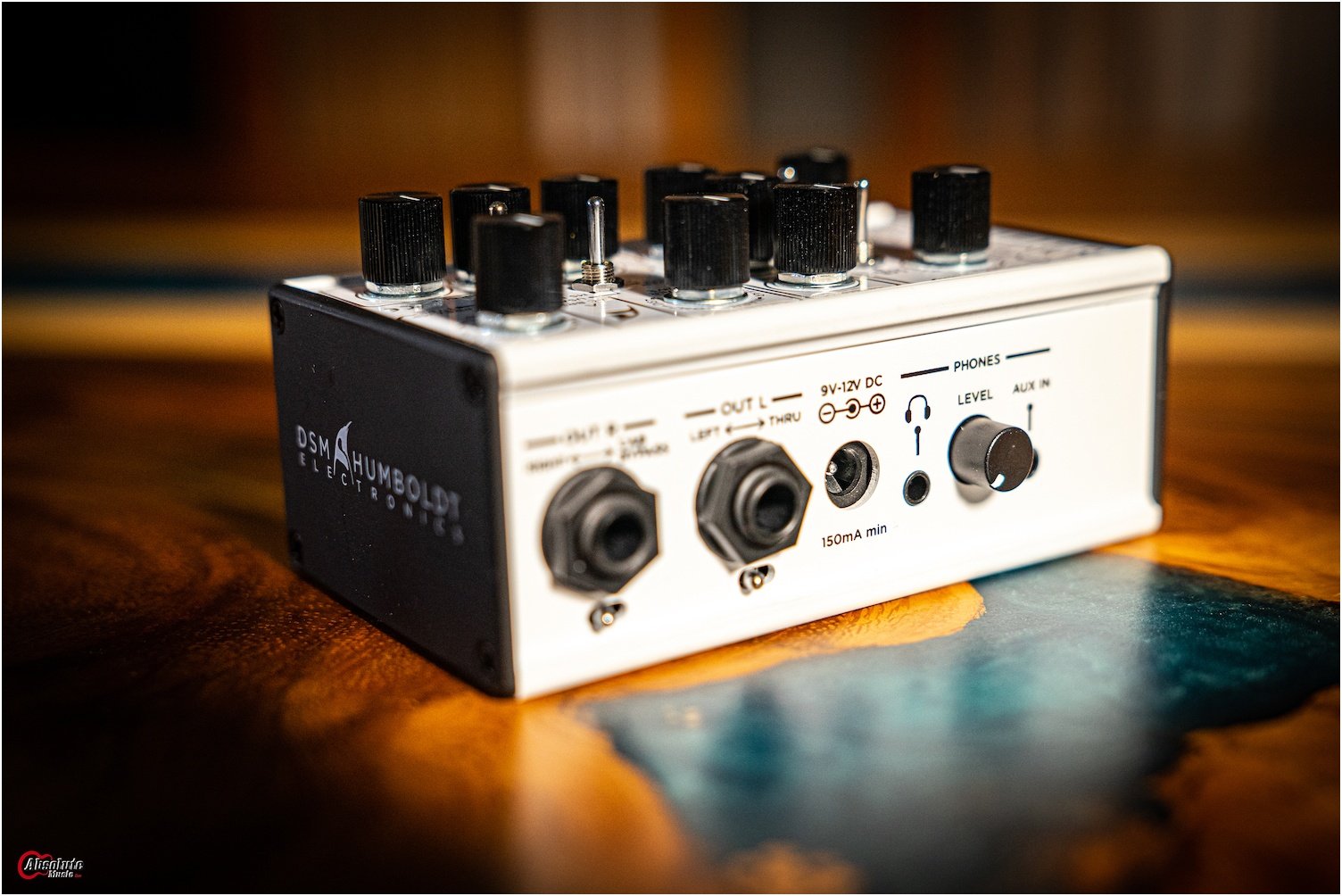

Connector: 2.1mm DC jack, Center negative
Current consumption: 120mA
Recommended supply current: 200mA and up
Input: 1Meg Ohm
L & R return: 1Meg Ohm
Send: 1K Ohm
Unbalanced Outputs: 4.7K Ohms

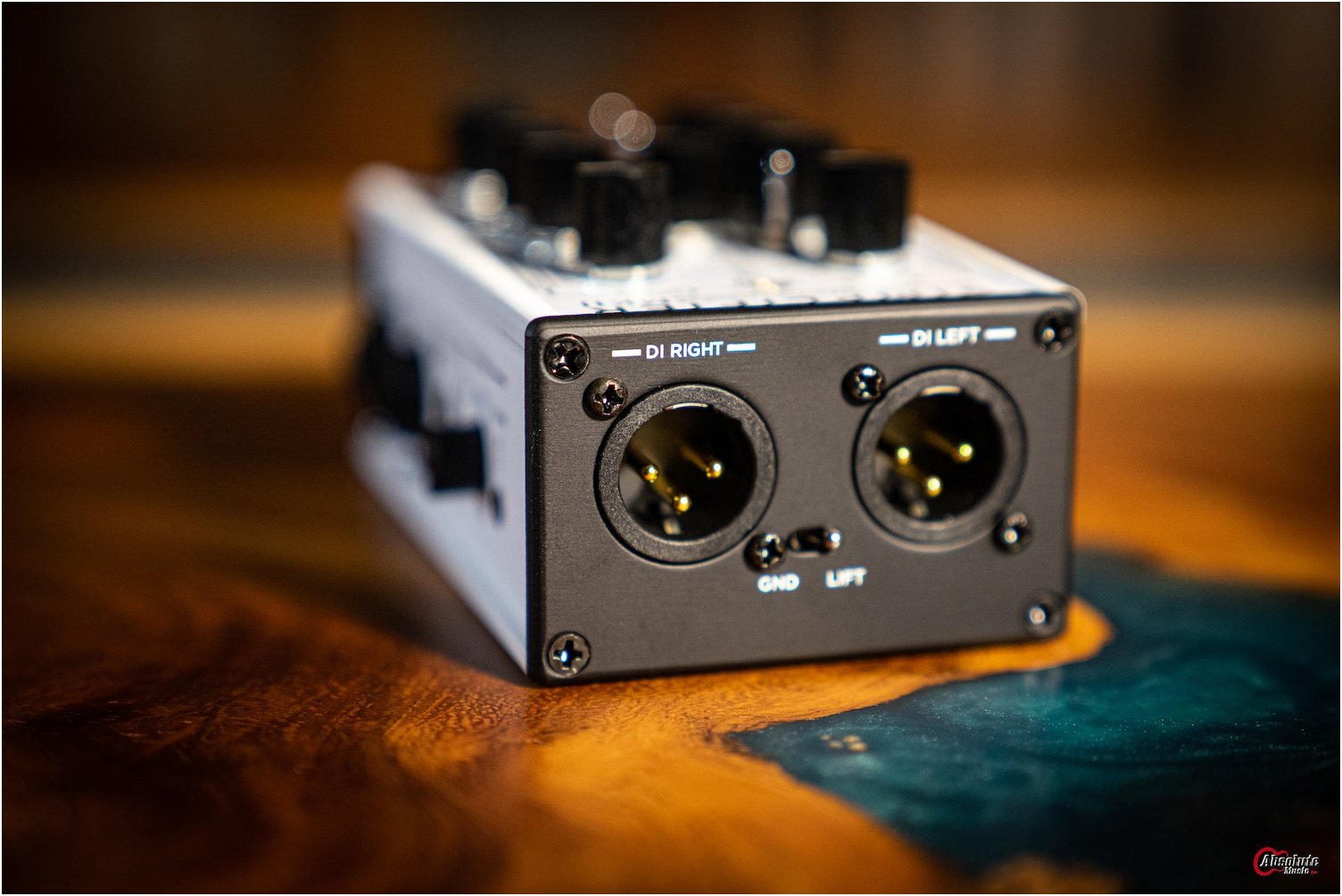

Balanced Outputs: 100 Ohms
Headphone amp specs:
Power: 135mW into 32 Ohms.
Use with 16, 32, 64 and 96 Ohm Headphones. Loss of power can occur with higher impedance headphones.
Before powering up the unit, turn down the receiving device (PA, interface, headphones, etc) in order to avoid power up “pop”.
The best way to power up a Simplifier, is to use a 9V REGULATED DC adapter, make sure you are using a clean voltage source and you are not daisy chaining the power supply with high current digital units.
Recommended Power supply:
The Power supply specs should be: - 9V to 12V DC voltage
- Regulated (designed for low noise, musical instruments use)
- 150 mA minimum current rating. You can use higher current rating supplies. - Center negative.
Do not use cheap wall wart adapters not intended for pedal use. These are not filtered or regulated and will introduce hum and other unwanted noises.
* DO NOT USE CENTER POSITIVE SUPPLIES, IT MAY DAMAGE THE UNIT AND IT WILL NOT BE COVERED BY WARRANTY. PLEASE MAKE SURE THE POLARITY IS CORRECT BEFORE POWERING UP.
