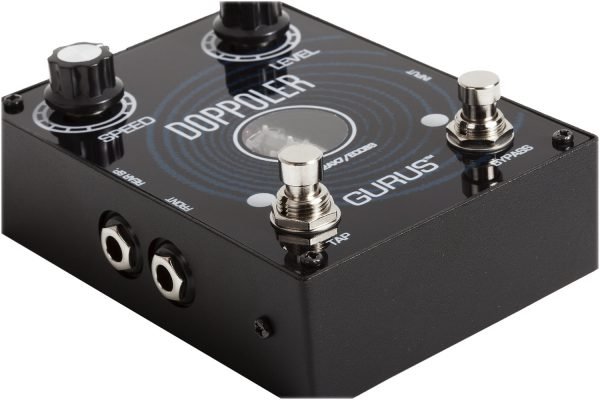

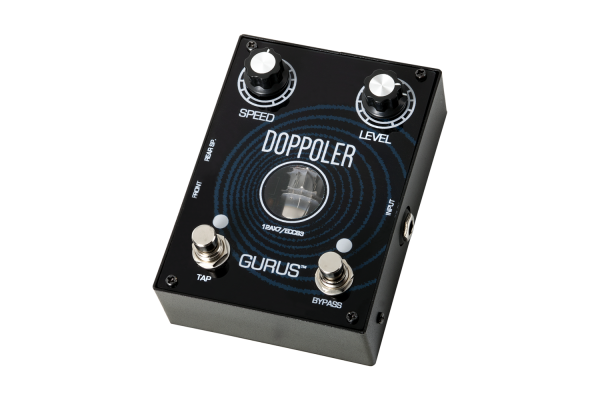

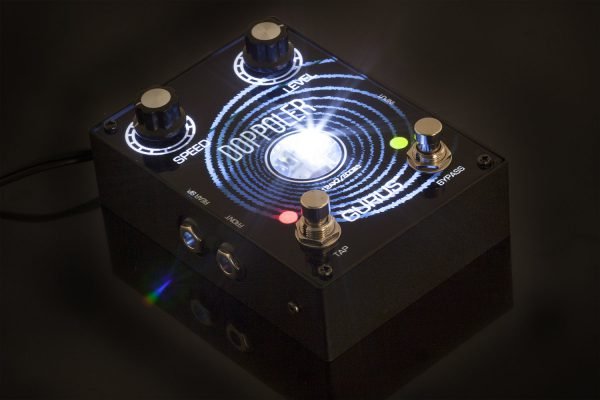

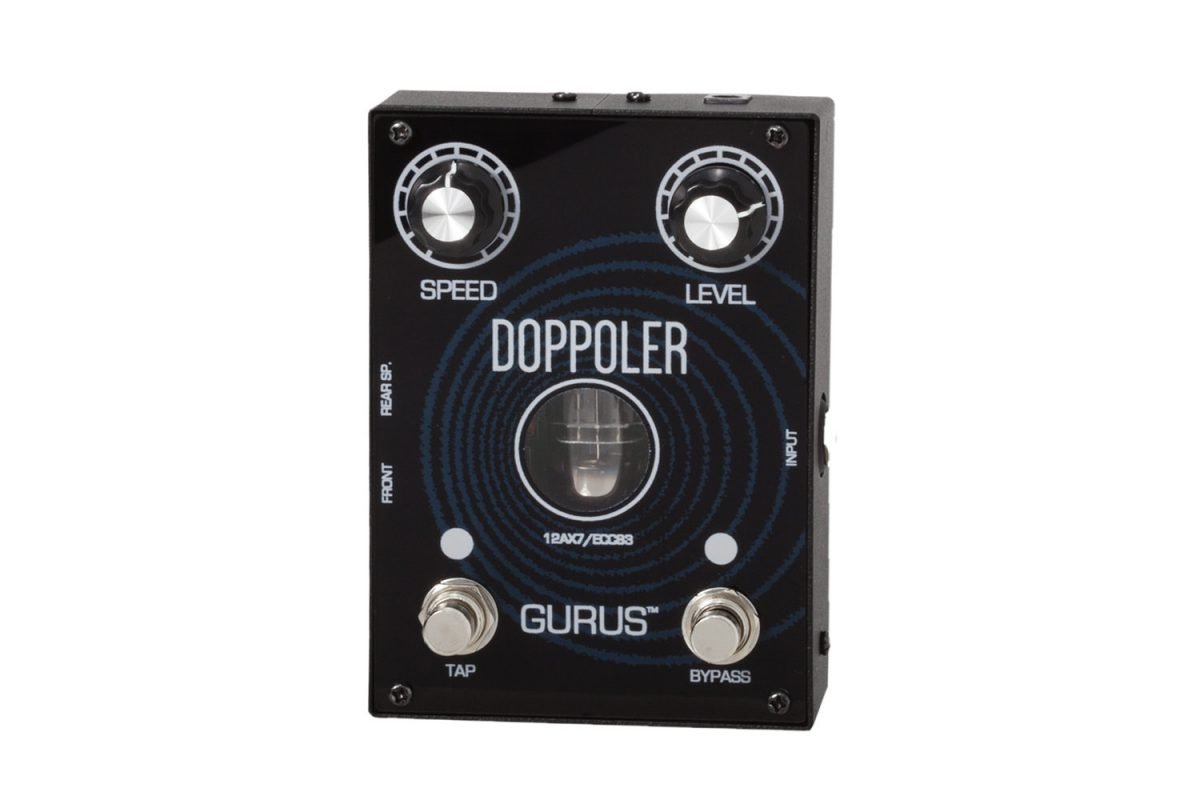

Gurus  Rotating Speaker Simulation System Tube

Inspired by the old-yet-innovative rotary speaker systems, like the old Maestro Rover, Leslie, and mostly the “Doppolas rotary speaker” made by Mr. Gilmour & Mr. Taylor..

the Doppoler is NOT a “rotary simulator” but the brain of a system that in his best setting is made of two cabinets, positioned at 180° from each other, to let the Doppoler handle it reproducing what happened to signal when the speaker is rotating. We paid a lot of attention, measurement, tests, to exactly understand and reproduce what happens to the signal coming to our ears with a rotary speaker. This meant to apply eq filters, phase changing, volume changing, and calculate how reflections reacts and affect all of this..

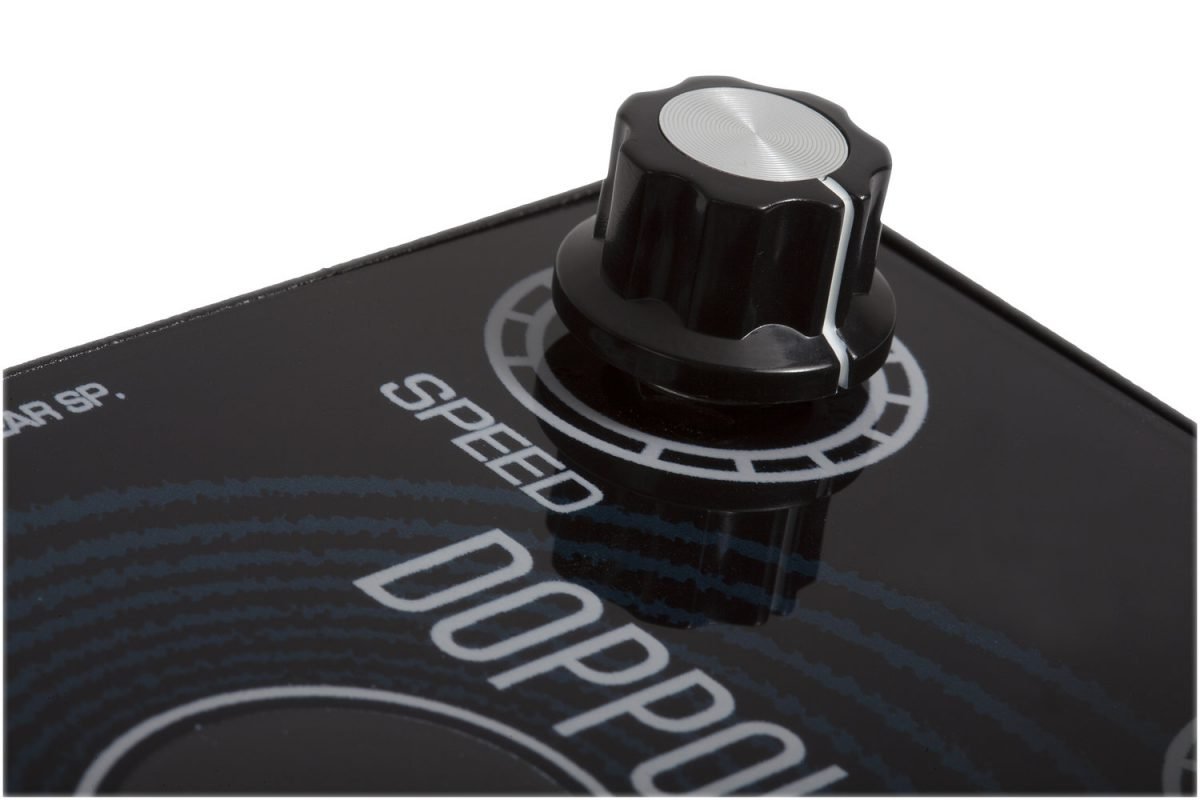

Indeed, the signal coming out from Front and Rear speaker are quite different from each other, cause they are already made to do their job in the correct position. Speed sets the speed of rotary effect, and can also be set by the TAP tempo footswitch. Level sets the level of rotary effect and the ambient. The result, is an outstanding tridimensional sounds that will force you to keep it always ON, even with low speed and intensity without notice the rotary effect, just adding ambient and 3D to your sound.

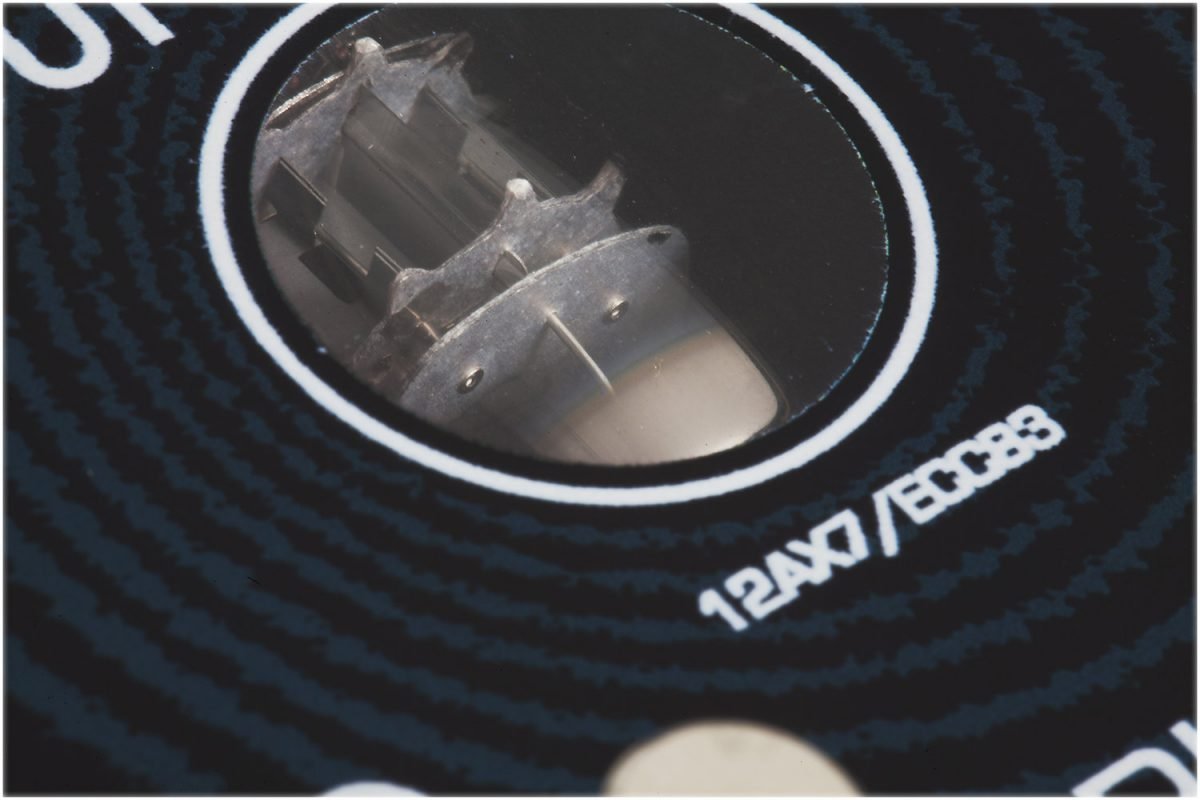

A very transparent Tube preamp make your sound great respecting your instrument, and you can easily add an overdrive pedal in front of it like our Sexydrive mkII with his blend option, to add beautiful drive to your Organ sound. What we keep in mind designing the DOPPOLER is the ambient and 3D sound, people asked me to do some kind of “leslie simulator” for years, and i’ve always replied that i don’t want to make a simulator of an instrument where the acoustic component of the sound was so important.

So we started designing it from the acoustic point, wanting to keep it intact and the base of our system, then we designed our circuit to reproduce what happens between the cabinet and our ears. So far from a simple tremolo/rotating simulator. You can easily use it in your pedalboard in front of your amp, and easily add just an additional speaker behind your main speaker.. maybe an active cabinet, a combo amp, or using one of our Miniamp to drive a guitar Speaker.

Power In
12VDC (negative TIP)

Consumption at 12V
max 300mA

Input Impedance
<=1M Ohm

Output Front Impedance
<=10K Ohm

Output Rear Impedance
<=10K Ohm

S/N ratio
<90db

Distortion
max 2%THD

Estimated tube Life
Up to 5000Hrs.

Larghezza
(Width) 90mm. (3,5”)

Lunghezza
(Lenght) 130mm. (5,1”)

Altezza
(Height) 50mm. (2”)

Peso
(Weight) 0,7Kg. (1,5lbs)
